Override and extend renderers

Your module returns a render map. Keys are AST node types (or nested variant selectors). Site maps merge after theme defaults, so the same key replaces the built-in renderer for your site.

Override an existing node¶

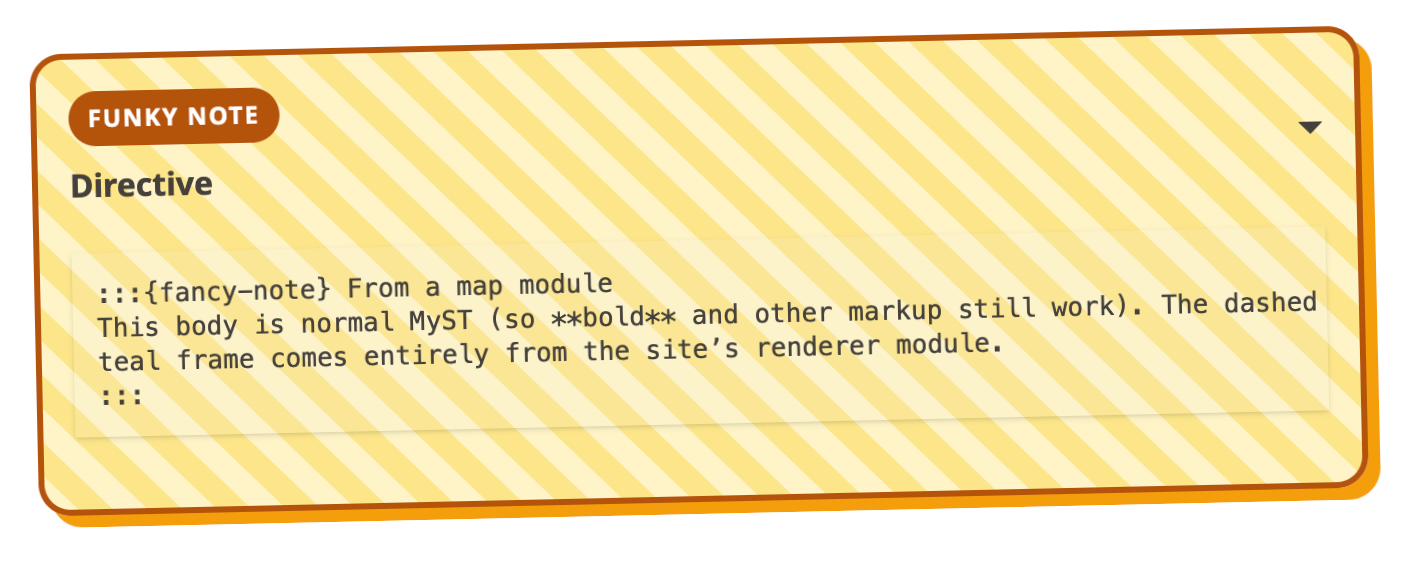

Return a built-in type key — for example admonition — and every note, warning, and tip on the site uses your component. No new Curvenote directive is required.

export default function ASTRenderer({ React, ASTComponent }) {
  const { createElement: h, useState } = React;

  function FunkyAdmonition({ node }) {
    // Custom chrome; still render title/body via ASTComponent
    return h('div', { className: 'funky-admonition' }, h(ASTComponent, { ast: node.children }));
  }

  return {
    admonition: FunkyAdmonition,
  };
}

Authors keep writing normal MyST Markdown:

:::{note} Still a note
Same AST type — different React component.
:::

Add a new directive and renderer¶

For a node type that does not exist yet, combine:

1. A Curvenote directive in your plugin that emits a custom AST type.

2. A renderer map entry whose key matches that type.

That is the fancy-note pattern: fancy-note → { type: 'fancyNote', … } → { fancyNote: FancyNote }. Authors write the directive; you own the React.

Showcase: filterable table¶

The most interesting pattern is often not a new directive. Attach behavior to an existing AST node with a variant selector, wrap it with your UI, then hand the children back through ASTComponent.

The filterable-table example selects only table containers marked filterable:

return {
  container: {
    'container[class="filterable"][kind="table"]': FilterableTable,
  },
};

Authors write a normal list-table in MyST Markdown:

```{list-table} Lab inventory
:header-rows: 1
:class: filterable

* - Name
  - Team
* - Ada Lovelace
  - Analytics
```

The component:

1. Renders a search field and a “N of M rows” label.

2. Filters body rows in JavaScript (header rows stay).

3. Shallow-clones the container, removes the filterable class, and calls ASTComponent so the built-in container / table renderers draw the markup.

This pattern — interactive shell, built-in renderers underneath — is a good default whenever you want richer behavior without reimplementing tables, math, or nested markup.

Register modules as described in Add a render plugin to your site, and pick a packaging format that fits your workflow.
